Electrical Specification

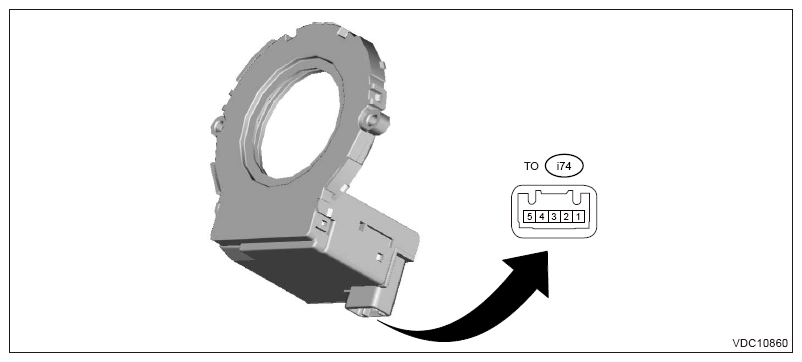

G16446683Courtesy of SUBARU OF AMERICA, INC.
Connector No. Terminal No. Contents Measuring condition Standard
i74 1 Ground - -
i74 2 Chassis CAN_L signal - -
i74 3 Chassis CAN_H signal - -
i74 4 Ignition power supply Ignition switch: ON 9 - 16 V
i74 5 - - -
