Component Description

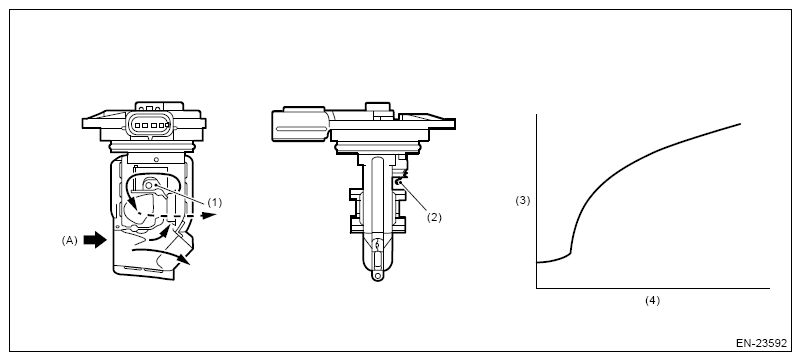

G16350278Courtesy of SUBARU OF AMERICA, INC.
(A) Air
(1) Air flow sensor
(2) Intake air temperature sensor
(3) Frequency (kHz)
(4) Amount of intake air (kg (lb)/s)
