DTC P0134: A/F/O2 Sensor Circuit No Activity Detected Bank 1 Sensor 1: Notes
DTC detecting condition:
Immediately at fault recognition

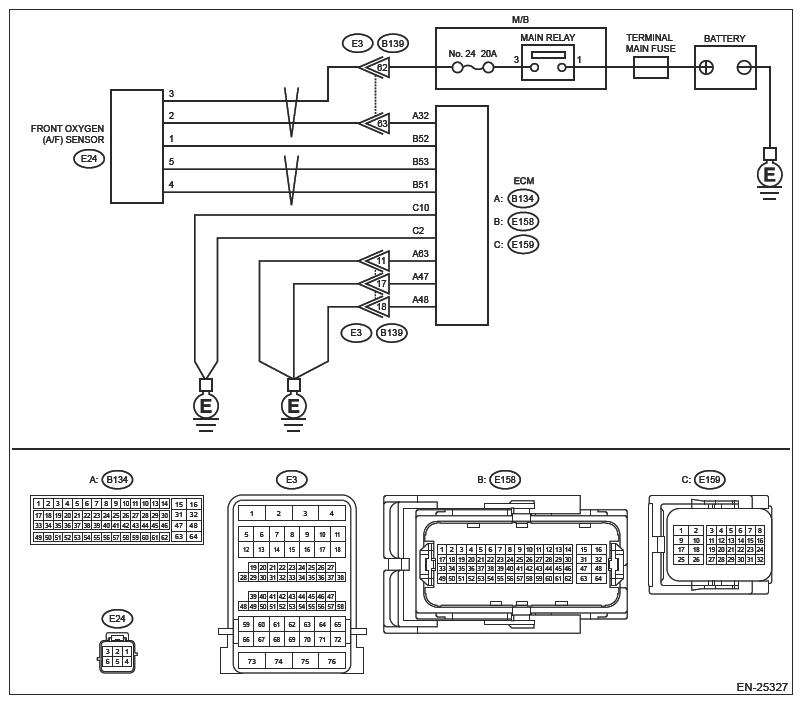

Wiring diagram:
Engine Electrical System Ref. to WIRING SYSTEM>ENGINE ELECTRICAL SYSTEM .
CAUTION:
Use the check board when measuring the ECM terminal voltage and resistance. Ref. to ENGINE (DIAGNOSTICS) (H4DOTC)>GENERAL DESCRIPTION>PREPARATION TOOL>HOW TO USE CHECK BOARD
.
NOTE:
After the faulty parts are repaired or replaced, perform the final check in Basic Diagnostic Procedure. Ref. to ENGINE (DIAGNOSTICS) (H4DOTC)>BASIC DIAGNOSTIC PROCEDURE>PROCEDURE
.
- CHECK HARNESS BETWEEN ECM AND FRONT OXYGEN (A/F) SENSOR CONNECTOR (OPEN)
.
- Turn the ignition switch to OFF.
- Disconnect the connector from ECM.
- Disconnect the connector from the front oxygen (A/F) sensor.
- Measure the resistance of harness between ECM connector and front oxygen (A/F) sensor connector.
Connector & terminal
(E158) No. 52 - (E24) No. 1:
(E158) No. 51 - (E24) No. 4:
(E158) No. 53 - (E24) No. 5:
Is the resistance less than 1 Ω?
Yes: Go to 2.
No: Repair the open circuit of harness between ECM connector and front oxygen (A/F) sensor connector.
- CHECK FOR POOR CONTACT
.
Check for poor contact of ECM and front oxygen (A/F) sensor connector.
Is there poor contact of ECM or front oxygen (A/F) sensor connector?
Yes: Repair the poor contact of ECM or front oxygen (A/F) sensor connector.
No: Replace the front oxygen (A/F) sensor. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>FRONT OXYGEN (A/F) SENSOR .
