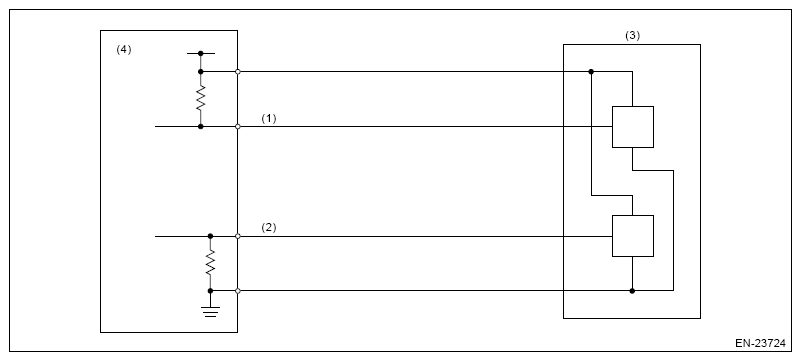

Component Description
 Courtesy of SUBARU OF AMERICA, INC.
|
| (1) |
Throttle position sensor 1 signal |
| (2) |
Throttle position sensor 2 signal |
| (3) |
Throttle position sensor |
| (4) |
Engine control module (ECM) |
SECONDARY PARAMETER AND EXECUTION CONDITION - EXECUTION CONDITION
| Secondary parameters |
Execution condition |
| Battery voltage |
6 V or more |
