Component Description

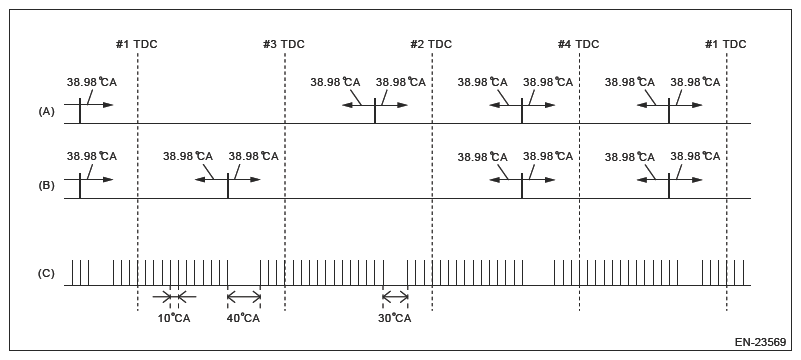

G16390476Courtesy of SUBARU OF AMERICA, INC.
(A) Intake cam signal RH
(B) Intake cam signal LH
(C) Crankshaft signal

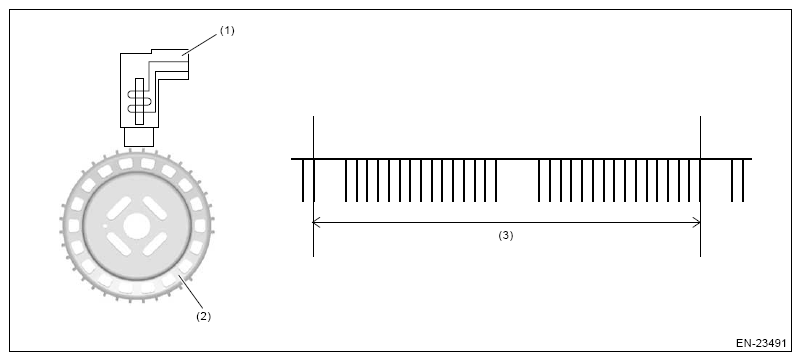

G16390479Courtesy of SUBARU OF AMERICA, INC.
(1) Crankshaft position sensor
(2) Crankshaft position sensor plate
(3) 1 crankshaft rotation
