Component Description

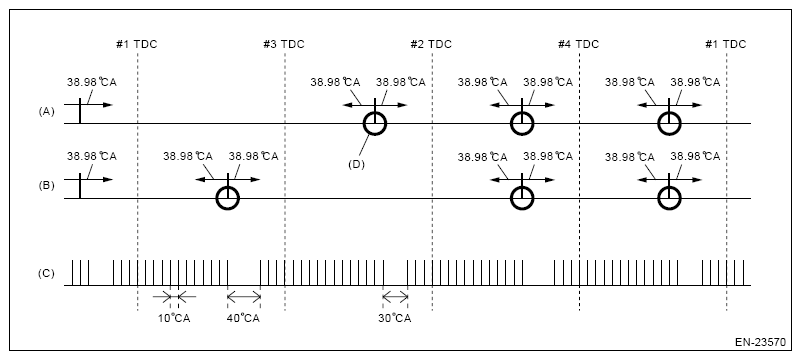

G16390481Courtesy of SUBARU OF AMERICA, INC.
(A) Intake cam signal RH
(B) Intake cam signal LH
(C) Crankshaft signal
(D) Camshaft position signal: When normal, there will be three camshaft position signals for every two crankshaft revolutions.
