DTC P0480: Fan 1 Control Circuit: Notes

DTC detecting condition:

Detected when two consecutive driving cycles with fault occur.

Trouble symptom:

The radiator fan keeps rotating.

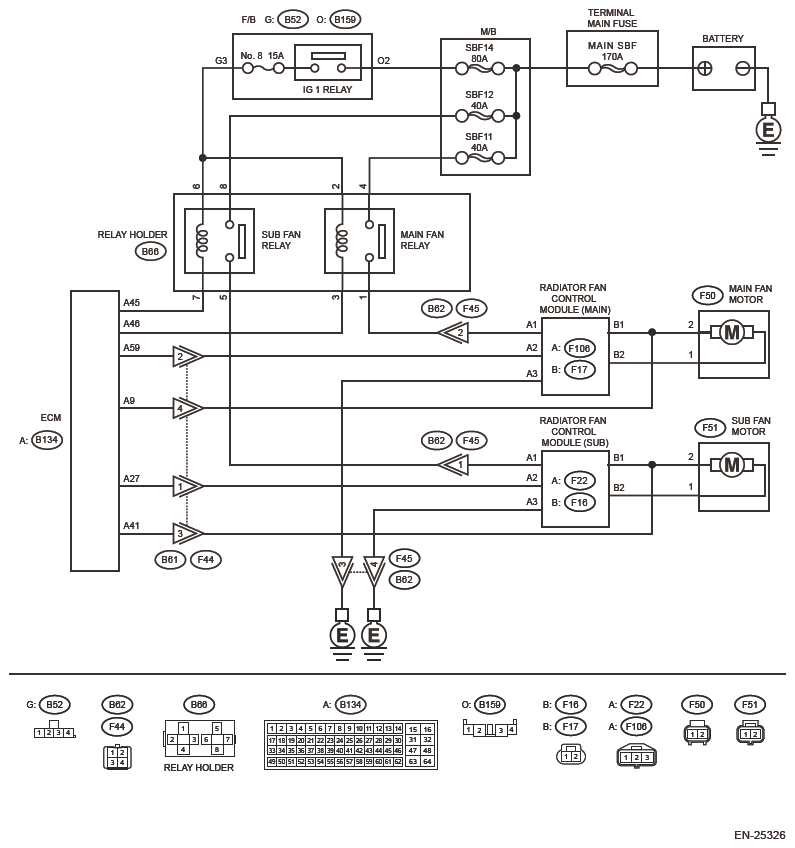

Wiring diagram:

Engine Electrical System Ref. to WIRING SYSTEM>ENGINE ELECTRICAL SYSTEM .

Courtesy of SUBARU OF AMERICA, INC.

CAUTION: Use the check board when measuring the ECM terminal voltage and resistance. Ref. to ENGINE (DIAGNOSTICS) (H4DOTC)>GENERAL DESCRIPTION>PREPARATION TOOL>HOW TO USE CHECK BOARD .

NOTE: After the faulty parts are repaired or replaced, perform the final check in Basic Diagnostic Procedure. Ref. to ENGINE (DIAGNOSTICS) (H4DOTC)>BASIC DIAGNOSTIC PROCEDURE>PROCEDURE .

CHECK HARNESS OF RADIATOR MAIN FAN DIAGNOSTIC SIGNAL (OPEN) .
1. Turn the ignition switch to OFF.
2. Disconnect the connector from ECM.
3. Disconnect the connector from the main fan motor.
4. Disconnect the connector from radiator fan control module (main).
5. Measure the resistance between ECM connector and main fan motor connector.
  Connector & terminal

  (B134) No. 9 - (F50) No. 2:
Is the resistance less than 1 Ω?

Yes: Go to 2.

No: Repair the following item.
- Open circuit in harness between ECM connector and main fan motor connector
- Poor contact of coupling connector
CHECK HARNESS OF RADIATOR MAIN FAN DIAGNOSTIC SIGNAL (SHORT TO GROUND) .
Measure the resistance between the ECM connector and engine ground.

Connector & terminal

(B134) No. 9 (+) - Engine ground (-):

Is the resistance 1 MΩ or more?

Yes: Go to 3.

No: Repair the short circuit to ground in harness between ECM Connector and main fan motor or radiator fan control module (main) connector.
CHECK MAIN FAN RELAY .
1. Remove the main fan relay from the relay holder.
2. Check the main fan relay. Ref. to COOLING (H4DOTC)>RADIATOR FAN RELAY>INSPECTION .
Is the check result OK?

Yes: Go to 4.

No: Replace the main fan relay. Ref. to COOLING (H4DOTC)>RADIATOR FAN RELAY .
CHECK POWER SUPPLY FOR RADIATOR FAN CONTROL MODULE (MAIN) .
1. Connect the connector to ECM.
2. Turn the ignition switch to ON.
3. Measure the voltage between relay holder connector and engine ground.
  Connector & terminal

  (B66) No. 2 (+) - Engine ground (-):

  (B66) No. 4 (+) - Engine ground (-):
Is the voltage 10 V or more?

Yes: Go to 5.

No: Repair the following item.
- Open circuit or short circuit to ground in harness between M/B and relay holder connector
- Open circuit or short circuit to ground in harness between F/B and relay holder connector
- Blown out of fuse
- Poor contact of IG1 relay
CHECK POWER SUPPLY FOR RADIATOR FAN CONTROL MODULE (MAIN) .
1. Turn the ignition switch to OFF.
2. Install the main fan relay.
3. Turn the ignition switch to ON.
4. Measure the voltage between radiator fan control module (main) connector and engine ground.
  Connector & terminal

  (F106) No. 1 (+) - Engine ground (-):
Is the voltage 10 V or more?

Yes: Go to 6.

No: Repair the following item.
- Open circuit or short circuit to ground in harness between relay holder and radiator fan control module (main) connector
- Open circuit or short circuit to ground in harness between relay holder and ECM connector
- Poor contact of coupling connector
- Poor contact of main fan relay
CHECK HARNESS OF ECM AND RADIATOR FAN CONTROL UNIT (MAIN) (SHORT TO POWER SUPPLY) .
1. Turn the ignition switch to OFF.
2. Disconnect the connector from ECM.
3. Measure the voltage between ECM connector and engine ground.
  Connector & terminal

  (B134) No. 59 (+) - Engine ground (-):
Is the voltage 10 V or more?

Yes: Repair the power supply short circuit of harness between ECM and radiator fan control unit (main) connector.

No: Replace the radiator fan control module (main). Ref. to COOLING (H4DOTC)>RADIATOR FAN AND FAN MOTOR ASSEMBLY>DISASSEMBLY .
