Component Description

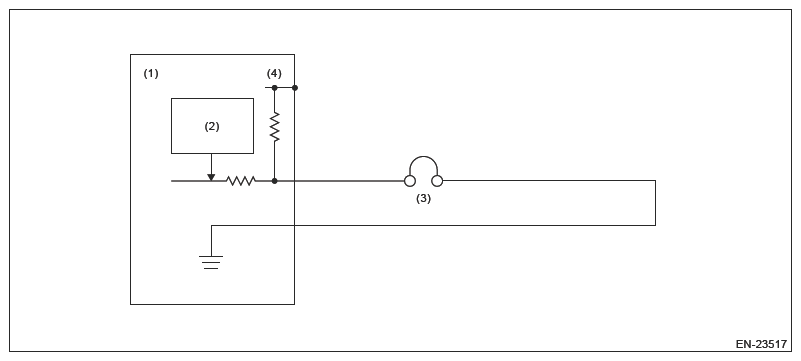

G16390508Courtesy of SUBARU OF AMERICA, INC.
(1) Engine control module (ECM)
(2) Detecting circuit
(3) Blow-by diagnosis connector
(4) 5 V
