Component Description

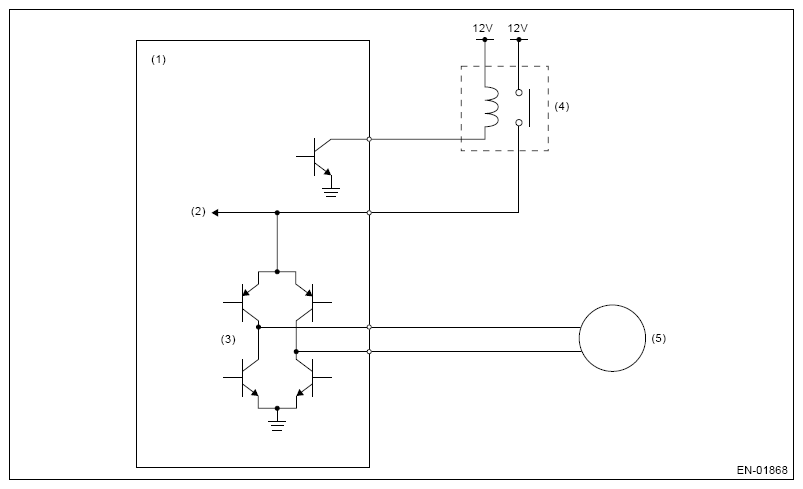

G16394733Courtesy of SUBARU OF AMERICA, INC.
(1) Engine control module (ECM)
(2) Voltage detection circuit
(3) Drive circuit
(4) Electronic throttle control relay
(5) Motor
