VDC Control Module And Hydraulic Control Unit (VDCCM & H/U)

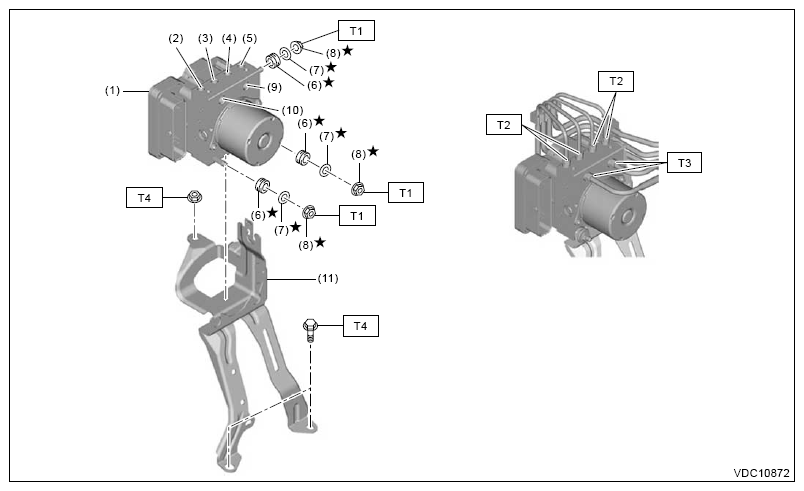

Fig 1: VDC Control Module And Hydraulic Control Unit Components Location

Courtesy of SUBARU OF AMERICA, INC.

(1)	Hydraulic unit ASSY VDC
(2)	Rear RH outlet
(3)	Front LH outlet
(4)	Front RH outlet
(5)	Rear LH outlet
(6)	Damper
(7)	Washer
(8)	Nut
(9)	Primary inlet
(10)	Secondary inlet
(11)	Bracket COMPL hydraulic unit VDC

Tightening torque: N.m (kgf-m, ft-lb)

T1: 7.5 (0.8, 5.5)

T2: 15 (1.5, 11.1)

T3: 19 (1.9, 14.0)

T4: 33 (3.4, 24.3)
