Reduction Driven Gear: Installation

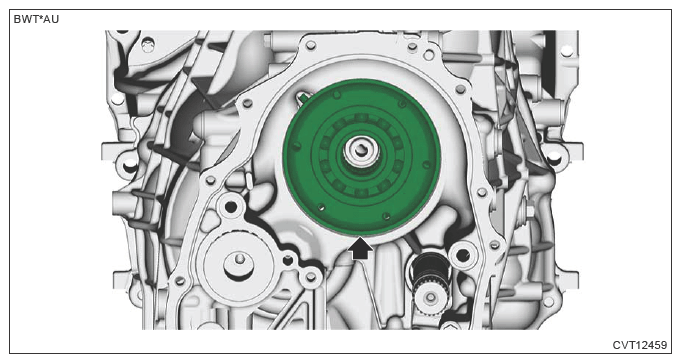

Install the straight pin.

Courtesy of SUBARU OF AMERICA, INC.

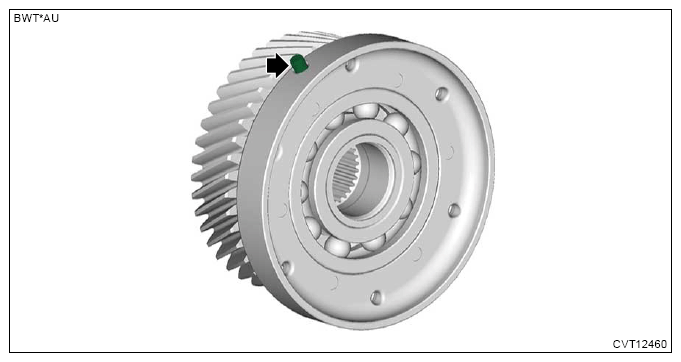

Install the reduction driven gear.
NOTE: Align the straight pin position with the cutout of the transmission case.

Courtesy of SUBARU OF AMERICA, INC.
Install the snap ring.

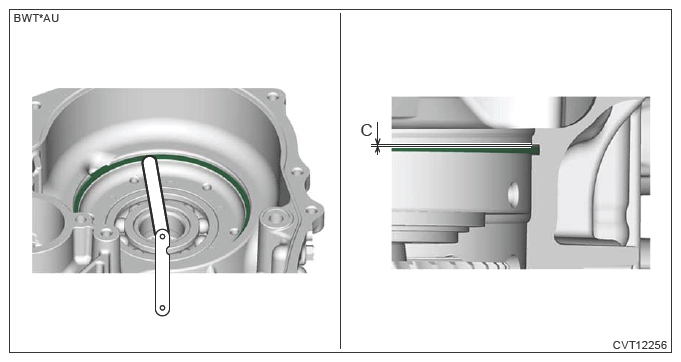

Measure the clearance "C" between snap ring and transmission case using a thickness gauge.
Specification:

0.05 - 0.25 mm (0.002 - 0.010 in)

Courtesy of SUBARU OF AMERICA, INC.
If the value exceeds the standard value, perform the following procedures.
1. Measure the snap ring thickness.
2. Select the snap ring of suitable thickness according to the measured value.
Install the intermediate case. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>INTERMEDIATE CASE>INSTALLATION .
