Select Lever
- Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY
.

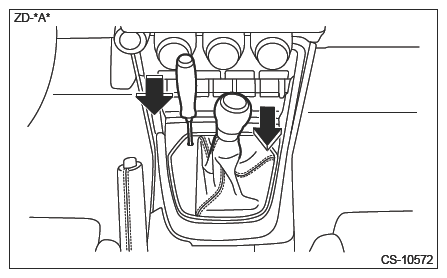

- Release the shift lock using a screwdriver, etc. and shift the select lever to the "N range".
 Courtesy of SUBARU OF AMERICA, INC.
|
- Lower the boot.
 Courtesy of SUBARU OF AMERICA, INC.
|
- Remove the grip by turning it counterclockwise.
 Courtesy of SUBARU OF AMERICA, INC.
|
- Remove the console box assembly and cover center side. Ref. to EXTERIOR/INTERIOR TRIM>CENTER CONSOLE>REMOVAL
.
- Disconnect the select lever and the select lever rod.
 Courtesy of SUBARU OF AMERICA, INC.
|
- Disconnect the connector.
 Courtesy of SUBARU OF AMERICA, INC.
|
- Remove the clips securing the harness.
 Courtesy of SUBARU OF AMERICA, INC.
|
- Remove the select lever.
 Courtesy of SUBARU OF AMERICA, INC.
|
