Component Description

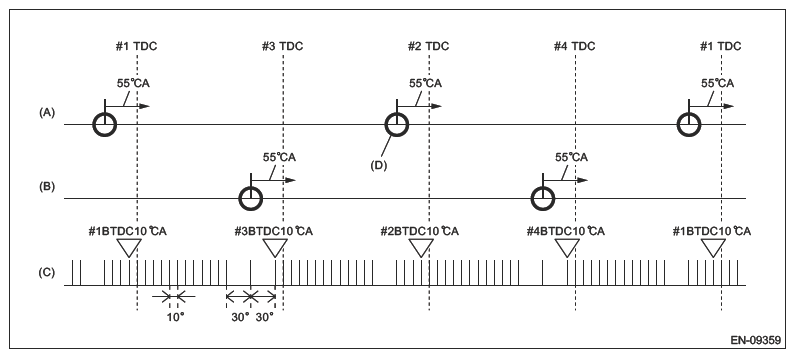

G16350399Courtesy of SUBARU OF AMERICA, INC.
(A) Exhaust cam signal RH
(B) Exhaust cam signal LH
(C) Crankshaft signal
(D) Camshaft position signal: When normal, there will be two camshaft position signals for every two crankshaft revolutions.
