Auto Start Stop System (Diagnostics): Electrical Component Location: Location

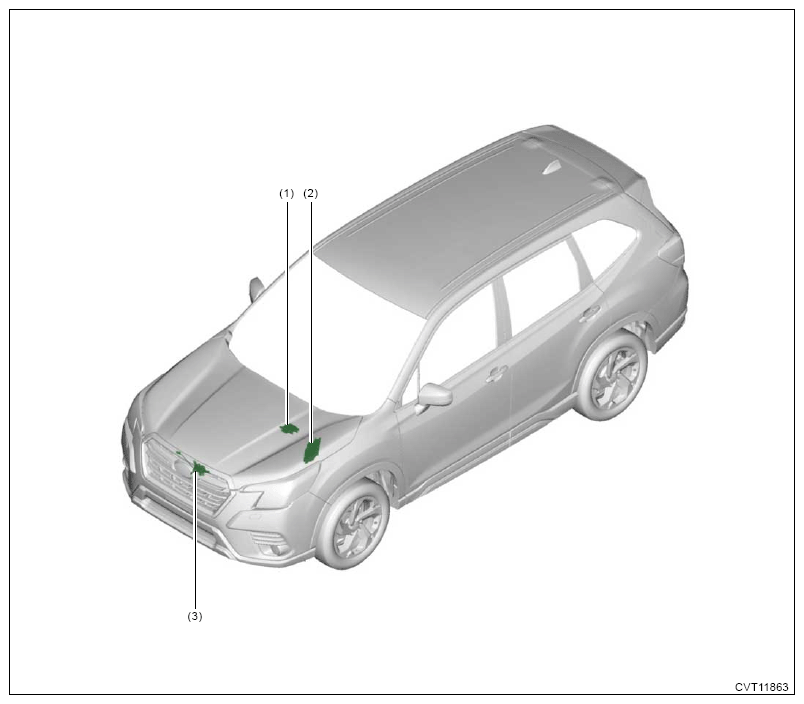

 Courtesy of SUBARU OF AMERICA, INC.
|
| (1) |
TCM |
| (2) |
ECM |
| (3) |
Front hood lock ASSY (with integrated hood switch) |

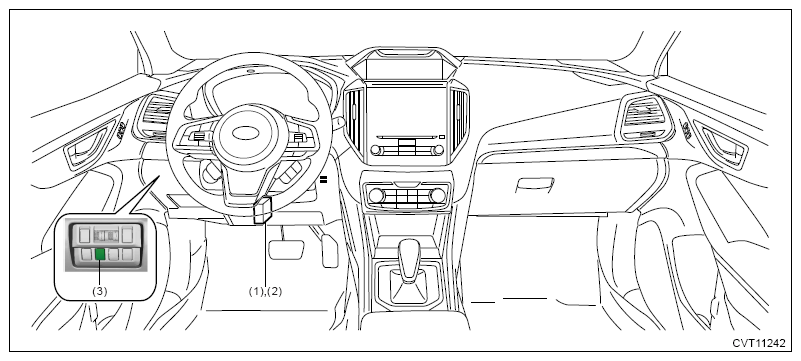

 Courtesy of SUBARU OF AMERICA, INC.
|
| (1) |
DC/DC converter 1 |
| (2) |
DC/DC converter 2 (with audio amplifier) |
| (3) |
Auto Start Stop cancel switch |

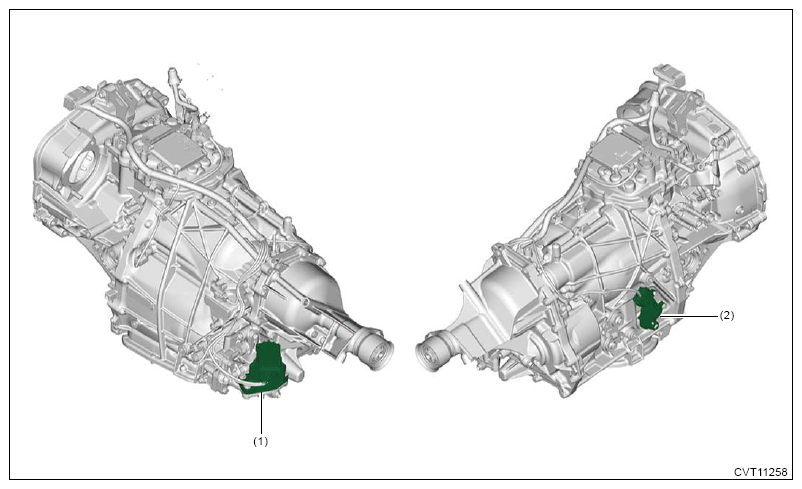

 Courtesy of SUBARU OF AMERICA, INC.
|
| (1) |
Electric oil pump |
| (2) |
Inhibitor switch |

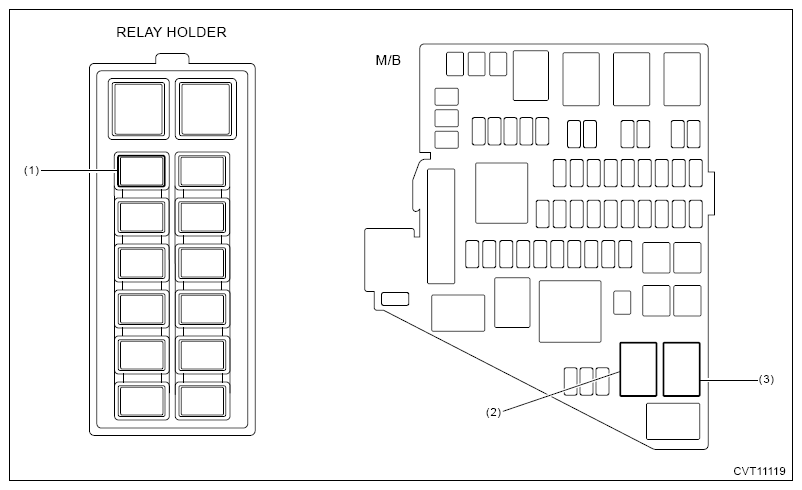

 Courtesy of SUBARU OF AMERICA, INC.
|
| (1) |
Electric oil pump relay |
| (2) |
Starter relay |
| (3) |
Starter cut relay |
