Prohibited Area For Repair And Inspection

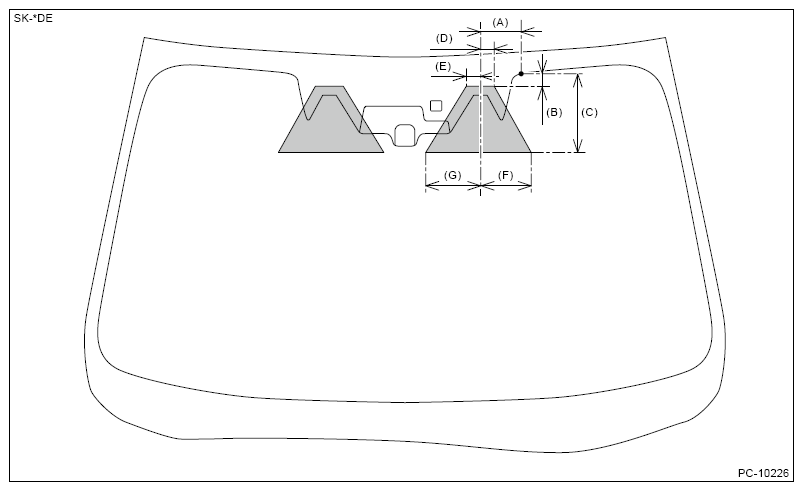

The illustration below shows from outside of the compartment.
If the damage is found in the glass repair prohibited area, always replace the glass. Damage in the prohibited area can affect the recognition of the stereo camera even if it is repaired, and thereby EyeSight function may not operate properly.
| (A) | 90.0 mm (3.54 in) |
| (B) | 30.0 mm (1.18 in) |
| (C) | 180.0 mm (7.09 in) |
| (D) | 30.0 mm (1.18 in) |
| (E) | 30.0 mm (1.18 in) |
| (F) | 120.0 mm (4.72 in) |
| (G) | 130.0 mm (5.12 in) |
