Bushing Arm Front

  1. Put an alignment mark on the arm COMPL front based on the gap of bushing intermediate plate for the bushing arm front.
    CAUTION: Always put an alignment mark for aligning the position on bushing installation.
    G16336719Courtesy of SUBARU OF AMERICA, INC.
    (a) Put an alignment mark.
    (b) Gap of bushing intermediate plate
    (c) Bushing intermediate plate

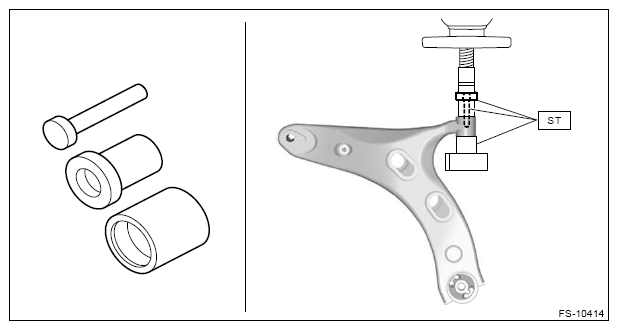

  2. Using the ST and a press, remove the bushing arm front.

    Preparation tool:

    ST: INSTALLER & REMOVER SET (927680000)

    G13591319Courtesy of SUBARU OF AMERICA, INC.
