Front Suspension System And Wheel Alignment: Stabilizer: Removal: Stabilizer

Lift up the vehicle.
Remove the under cover front. Ref. to EXTERIOR/INTERIOR TRIM>FRONT UNDER COVER>REMOVAL .
Remove the front exhaust pipe. Ref. to EXHAUST (H4DO)>FRONT EXHAUST PIPE>REMOVAL .

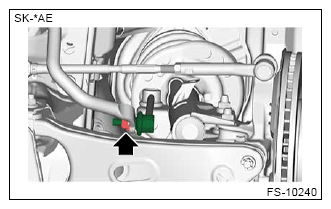

Disconnect the stabilizer link front (bottom part) on the left and right sides.

Courtesy of SUBARU OF AMERICA, INC.

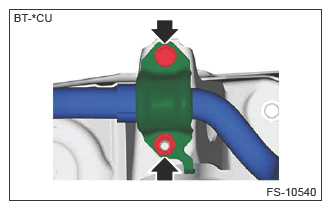

Remove the clamp stabilizer on the left and right sides, and remove the bushing stabilizer front.
- Except for WILDERNESS model
Courtesy of SUBARU OF AMERICA, INC.

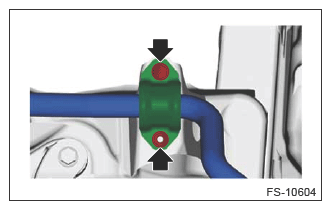

- WILDERNESS model
NOTE: The left and right clamp stabilizers of WILDERNESS model differ in shape.

Courtesy of SUBARU OF AMERICA, INC.
Remove the stabilizer front.
