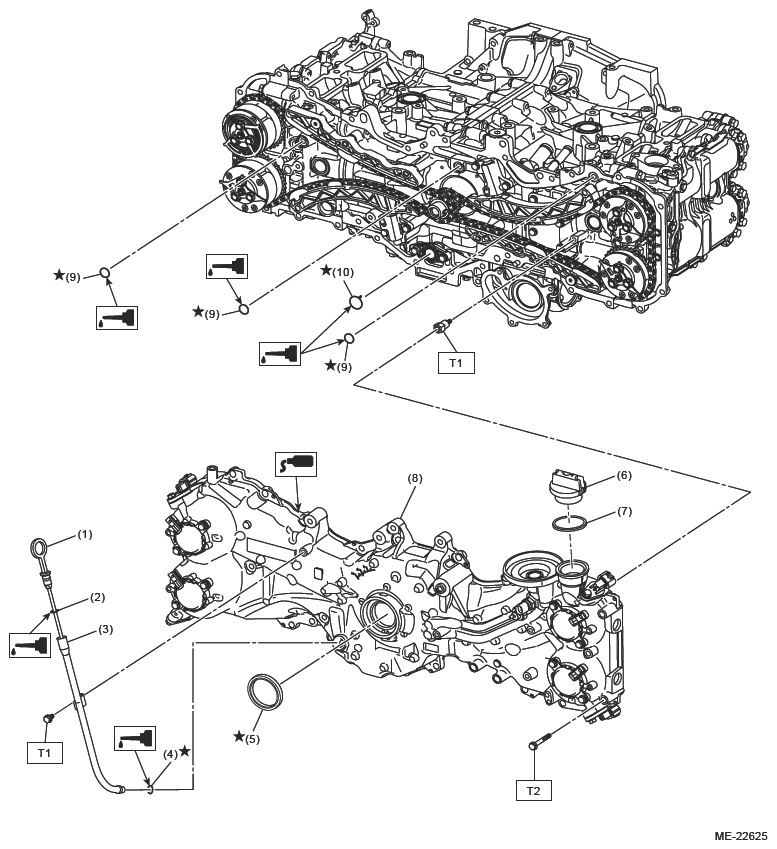

Chain Cover
| (1) | Oil level gauge |
| (2) | O-ring |
| (3) | Oil level gauge guide |
| (4) | O-ring |
| (5) | Front oil seal |
| (6) | Oil filler cap |
| (7) | Gasket |
| (8) | Chain cover |
| (9) | O-ring |
| (10) | O-ring |
Tightening torque: N.m (kgf-m, ft-lb)
T1: 6.4 (0.7, 4.7)
T2: Ref. to MECHANICAL (H4DO)>CHAIN COVER>INSTALLATION .
