Rocker Cover

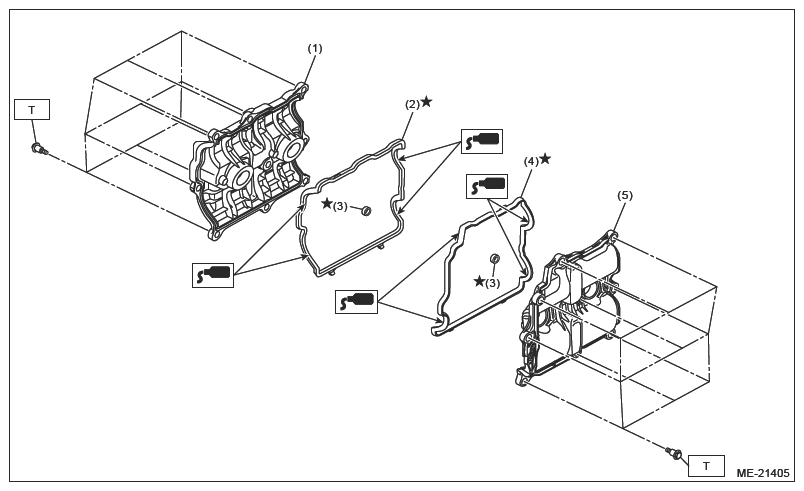

G16383234Courtesy of SUBARU OF AMERICA, INC.
(1) Rocker cover RH
(2) Rocker cover gasket RH
(3) Rocker cover gasket
(4) Rocker cover gasket LH
(5) Rocker cover LH

Tightening torque: N.m (kgf-m, ft-lb)

T:  Ref. to MECHANICAL (H4DO)>ROCKER COVER>INSTALLATION .
