Component Description

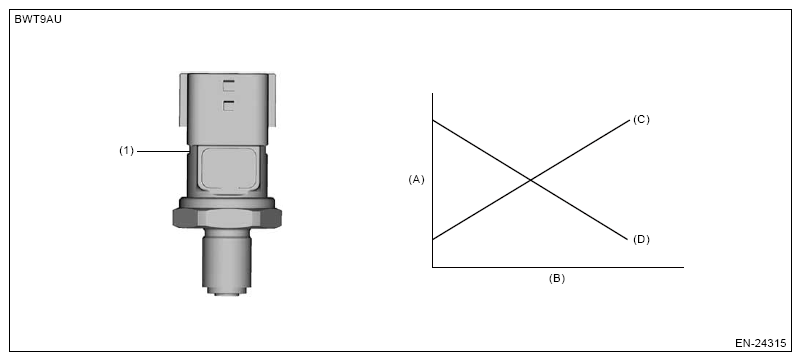

G16350348Courtesy of SUBARU OF AMERICA, INC.
(A) Output voltage
(D) Sub signal
(C) Main signal
(B) Absolute pressure
(1) Fuel pressure sensor
