Component Description

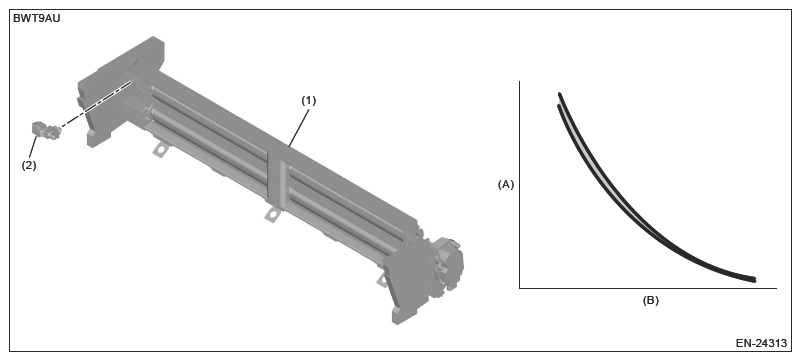

G16388409Courtesy of SUBARU OF AMERICA, INC.
(A) Resistance value (kΩ)
(B) Ambient air temperature (°C (°F))
(1) Active grille shutter
(2) Ambient sensor
