Transmission Control Module

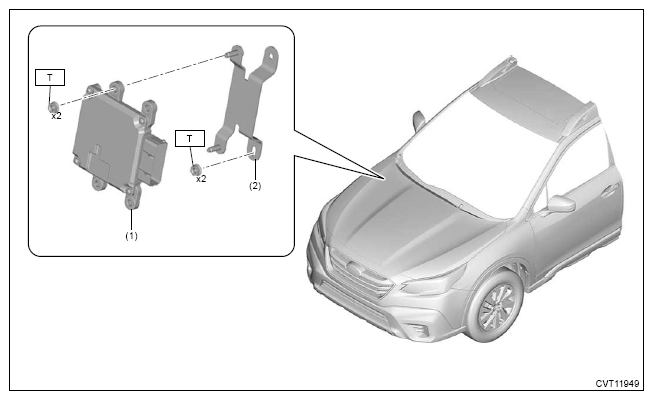

G16389313Courtesy of SUBARU OF AMERICA, INC.
(1) Transmission control module (TCM)
(2) TCM bracket

Tightening torque: N.m (kgf-m, ft-lb)

T: 7.5 (0.8, 5.5)
