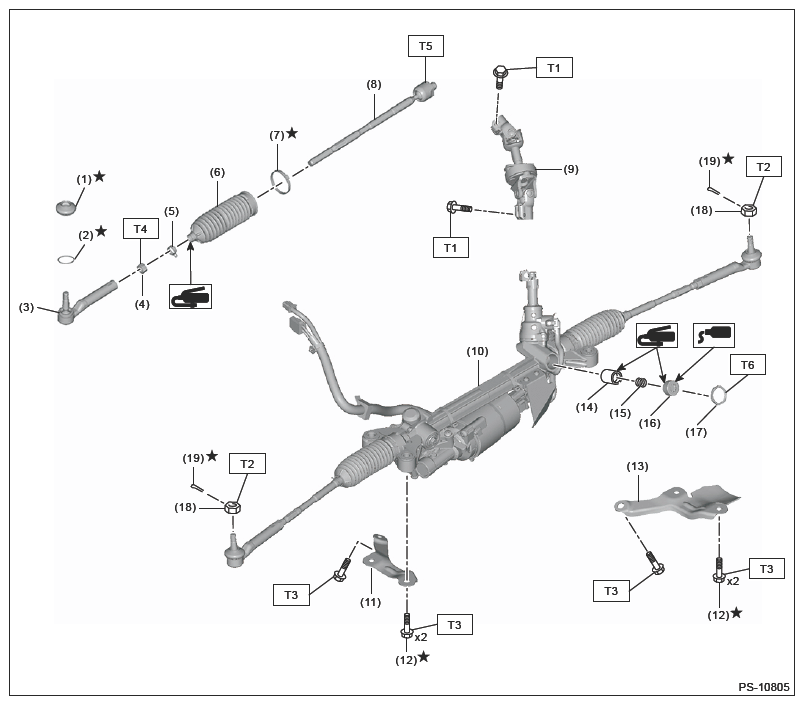

Steering Gearbox
| (1) | Dust boots |
| (2) | Clip boot tie-rod end |
| (3) | Tie-rod end |
| (4) | Lock nut |
| (5) | Clip boot tie-rod |
| (6) | Boot steering gearbox |
| (7) | Band boot |
| (8) | Tie-rod |
| (9) | Universal joint ASSY steering |
| (10) | Steering gearbox ASSY |
| (11) | Stiffener RH |
| (12) | Flange bolt |
| (13) | Stiffener LH |
| (14) | Pad pressure |
| (15) | Spring gearbox |
| (16) | Adjusting screw |
| (17) | Lock nut |
| (18) | Castle nut |
| (18) | Cotter pin |
Tightening torque: N.m (kgf-m. ft-lb)
T1: 24 (2.4, 17.7)
T2: 27 (2.8, 19.9)
T3: 60 (6.1, 44.3)
T4: 85 (8.7, 62.7)
T5: 115 (11.7, 84.8)
T6: Ref. to POWER ASSISTED SYSTEM (POWER STEERING)>ELECTRIC POWER STEERING GEARBOX>ADJUSTMENT .
