Front Suspension System And Wheel Alignment: Stabilizer: Installation: Notes

CAUTION:

• For the non-reusable parts, always use new parts.
• Be careful not to damage the boot of the ball joint.

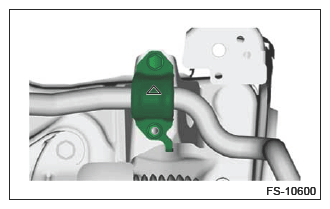

• Install the clamp stabilizer with the peak of triangle facing the front of the vehicle.

Courtesy of SUBARU OF AMERICA, INC.

NOTE: The left and right clamp stabilizers differ in shape.
