Stabilizer Bushing

  1. Remove the under cover front. Ref. to EXTERIOR/INTERIOR TRIM>FRONT UNDER COVER>REMOVAL .
  2. Remove the center exhaust pipe (rear). Ref. to EXHAUST (H4DOTC)>CENTER EXHAUST PIPE>REMOVAL>CENTER EXHAUST PIPE (REAR) .
  3. Remove the clamp stabilizer on the left and right sides.
    NOTE: The left and right clamp stabilizers differ in shape.

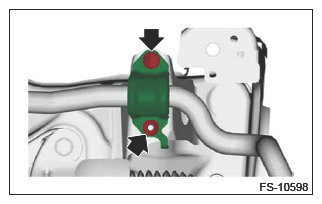

    G16439683Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the rubber bushing stabilizer front.
