Port Injection Side: RH

CAUTION:
  • Be careful not to spill fuel.
  • Catch the fuel from the pipes using a container or cloth.
  1. Release the fuel pressure. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>FUEL>PROCEDURE>RELEASING OF FUEL PRESSURE .
  2. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  3. Remove the fuel pipe protector RH No. 2. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>FUEL PIPE PROTECTOR>REMOVAL>FUEL PIPE PROTECTOR RH>FUEL PIPE PROTECTOR RH NO. 2 .

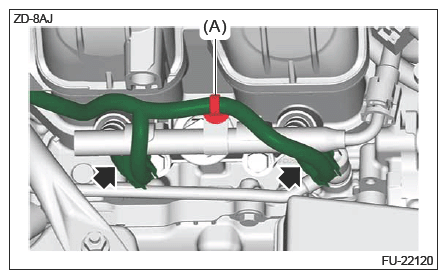

  4. Disconnect the connector from fuel injector and remove the clip (A).
    G16523244Courtesy of SUBARU OF AMERICA, INC.

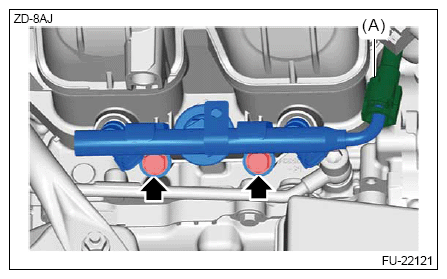

  5. Disconnect the fuel delivery pipe (A). Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>FUEL DELIVERY AND EVAPORATION LINES>REMOVAL>QUICK CONNECTOR DISCONNECTION (TYPE B) .
  6. Remove the fuel pipe RH together with the fuel injector.
    G16523245Courtesy of SUBARU OF AMERICA, INC.

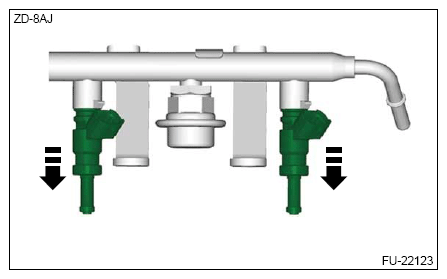

  7. Remove the fuel injector.
    CAUTION:
    • If the tip of the fuel injector is hit or the fuel injector is dropped, replace the fuel injector with a new part.
    • When the fuel injector is reinstalled again without replacing it, identify it with a tag etc. marked with the cylinder number.
    G16523246Courtesy of SUBARU OF AMERICA, INC.

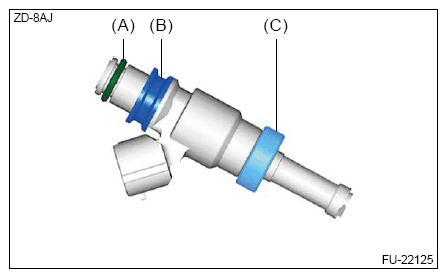

  8. Remove the O-ring (A), rubber (B) and seal ring (C).
    G16523247Courtesy of SUBARU OF AMERICA, INC.

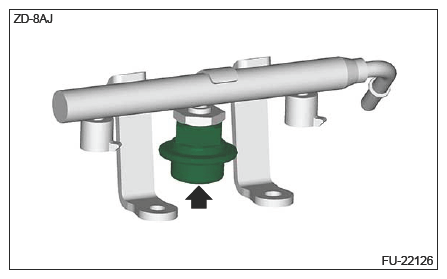

  9. Remove the pulsation damper.
NOTE: Perform this procedure only when required.
G16523248Courtesy of SUBARU OF AMERICA, INC.
