Draining Fuel (With SUBARU Select Monitor)

WARNING: Place "NO OPEN FLAMES" signs near the working area.

CAUTION: Be careful not to spill fuel.

NOTE:

If the fuel pump cannot be driven, refer to "DRAINING FUEL (WITH OTHER THAN SUBARU SELECT MONITOR)". Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>FUEL>PROCEDURE>DRAINING FUEL (WITH OTHER THAN SUBARU SELECT MONITOR) .
Be careful not to let the battery run-out.
Be aware that the fuel may remain in the fuel tank after draining the fuel.

Release the fuel pressure. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>FUEL>PROCEDURE>RELEASING OF FUEL PRESSURE .

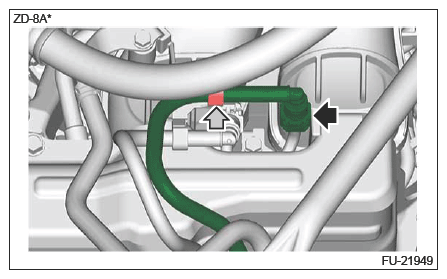

Disconnect the fuel delivery tube (cylinder direct injection side) and remove it from the fuel delivery tube clamp. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>FUEL DELIVERY AND EVAPORATION LINES>REMOVAL>QUICK CONNECTOR DISCONNECTION (TYPE A) .

Courtesy of SUBARU OF AMERICA, INC.
Connect the ST to the fuel delivery tube (cylinder direct injection side).
Special tool:

FUEL PIPE ADAPTER (18471AA000)
Connect the gasoline proof hose to ST and put the end of the hose in the container.
Drive the fuel pump and drain the fuel using Subaru Select Monitor. Ref. to ENGINE (DIAGNOSTICS) (H4DO)>ACTIVE TEST .
CAUTION:
- Be careful not to spill fuel.
- Always collect fuel using a dedicated fuel container.
Install the related parts in the reverse order after draining the fuel.
CAUTION:
- Be careful not to spill fuel.
- Catch the fuel from the tubes using a container or cloth.
- Check that there is no damage or dust on the quick connector. If necessary, clean the seal surface of the pipe.
- When connecting the quick connector, make sure to insert it all the way in before locking the slider.
- When it is difficult to lock the slider, check that the connector is fully inserted.
- After locking the slider, pull the quick connector itself to the disconnecting direction, and then push to the connecting direction in order to confirm secure connection. Always make sure to perform this confirmation ending up with a pushing in.
NOTE: For information about connecting the quick connector on the fuel delivery tube, refer to "Fuel Delivery and Evaporation Lines". Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>FUEL DELIVERY AND EVAPORATION LINES>INSTALLATION>QUICK CONNECTOR CONNECTION (TYPE A) .
