Collector Cover: Removal

  1. Remove the collector cover.
    NOTE: Check the grommet for peel-off or disengagement.

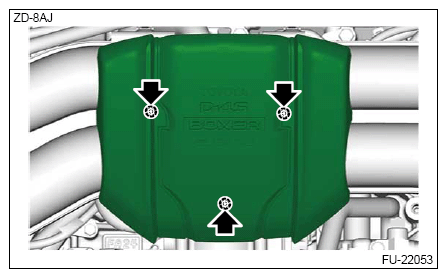

    G16523195Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the collector cover bracket.
    NOTE: Perform this procedure only when required.
    1. Remove the bolts securing the brake vacuum pipe.
    2. Remove the collector cover bracket No. 1 (A) and collector cover bracket No. 2 (B).

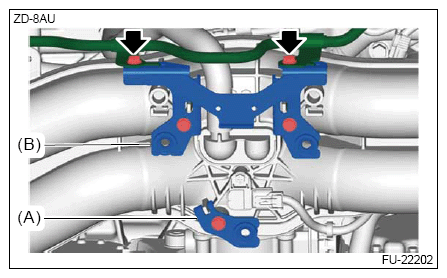

G16523196Courtesy of SUBARU OF AMERICA, INC.
