Fuel Filler Pipe: Assembly

Using a new neck holder, assemble the fuel filler pipe. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>GENERAL DESCRIPTION>COMPONENT>FUEL FILLER CAP AND FUEL FILLER PIPE .

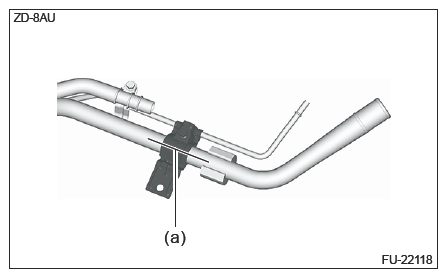

NOTE: Install the bracket to the fuel filler pipe by aligning it with the alignment mark (a).

Courtesy of SUBARU OF AMERICA, INC.
Attach cushion to the fuel filler pipe. (When replacing with a new part)
NOTE:
- Before attaching the cushion, degrease the attachment area of fuel filler pipe.

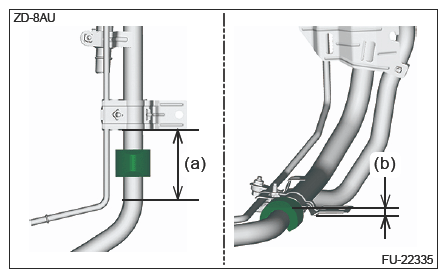

- Attach the cushion to the range (a) as shown in the figure.
- Attach the cushion so that it is parallel to the bracket (b).

Courtesy of SUBARU OF AMERICA, INC.
