Fuel Insulator: Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Perform the steps below to remove the air intake boot, and place it aside so that it does not interfere with the work.
    CAUTION: Do not disconnect the PCV hose No. 2 (a).
    1. Remove the air cleaner case. Ref. to INTAKE (INDUCTION) (H4DO)>AIR CLEANER CASE>REMOVAL .
    2. Loosen the clamp, remove the air intake boot, and place it aside so that it does not interfere with the work.
      CAUTION: Be careful not to pull out the PCV hose No. 2 (a).
    G16523197Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the intake manifold assembly. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>INTAKE MANIFOLD ASSEMBLY>REMOVAL .

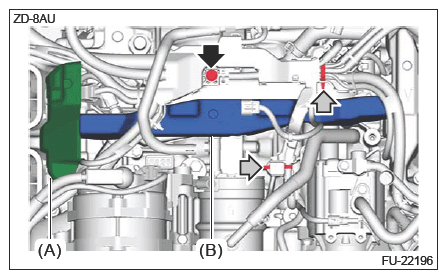

  4. Remove the fuel pipe insulator No. 1 (A).
  5. Remove the bolt and clip securing the engine wiring harness.
  6. Remove the fuel pipe insulator No. 2 (B).
    G16523242Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the fuel pipe protector LH No. 2. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>FUEL PIPE PROTECTOR>REMOVAL>FUEL PIPE PROTECTOR LH>FUEL PIPE PROTECTOR LH NO. 2 .

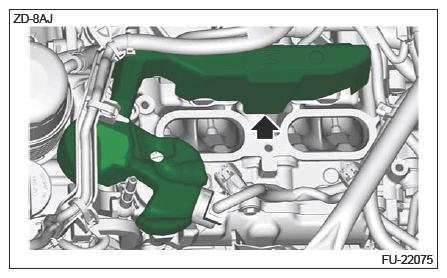

  8. Remove the fuel pipe insulator No. 3.
G16523243Courtesy of SUBARU OF AMERICA, INC.
