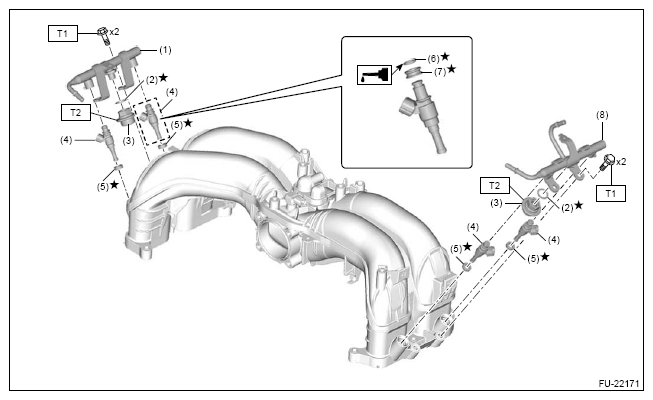

Fuel Injector (Port Injection Side)
Courtesy of SUBARU OF AMERICA, INC.
| (1) |
Fuel pipe RH |
| (2) |
Gasket |
| (3) |
Pulsation damper |
| (4) |
Fuel injector ASSY |
| (5) |
Seal ring |
| (6) |
O-ring |
| (7) |
Rubber |
| (8) |
Fuel pipe LH |
Tightening torque: N.m (kgf-m, ft-lb)
T1: 19 (1.9, 14.0)
T2: 21.6 (2.2, 15.9)
