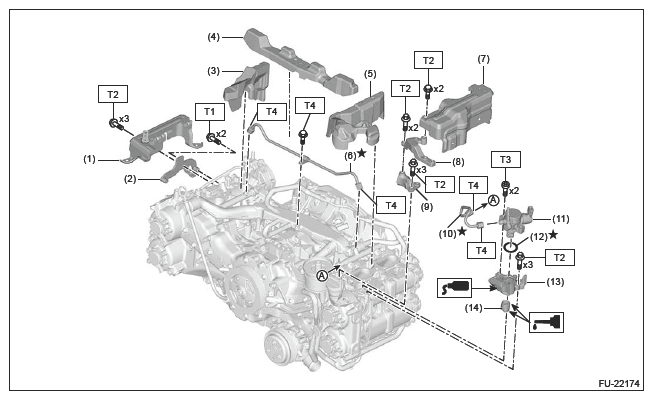

Fuel Pipe 2
| (1) | Fuel pipe protector RH No. 1 |
| (2) | Fuel pipe protector RH No. 2 |
| (3) | Fuel pipe insulator No. 1 |
| (4) | Fuel pipe insulator No. 2 |
| (5) | Fuel pipe insulator No. 3 |
| (6) | High-pressure fuel delivery pipe ASSY |
| (7) | Fuel pipe protector LH No. 1 |
| (8) | Fuel pipe protector LH No. 2 |
| (9) | Fuel pipe protector LH No. 3 |
| (10) | High-pressure fuel delivery pipe |
| (11) | High-pressure fuel pump |
| (12) | O-ring |
| (13) | High-pressure fuel pump case |
| (14) | Fuel pump lifter |
Tightening torque: N.m (kgf-m, ft-lb)
T1: 6.4 (0.7, 4.7)
T2: 19 (1.9, 14.0)
T3: 21 (2.1, 15.5)
T4: Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>HIGH PRESSURE FUEL DELIVERY PIPE>INSTALLATION .
