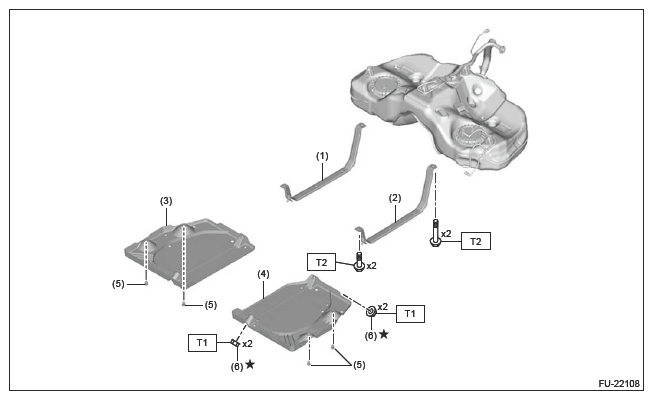

Fuel Tank 2
| (1) | Fuel tank band RH |
| (2) | Fuel tank band LH |
| (3) | Fuel tank protector RH |
| (4) | Fuel tank protector LH |
| (5) | Clip |
| (6) | Self-locking nut |
Tightening torque: N.m (kgf-m, ft-lb)
T1: 9 (0.9, 6.6)
T2: Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>FUEL TANK>INSTALLATION .
