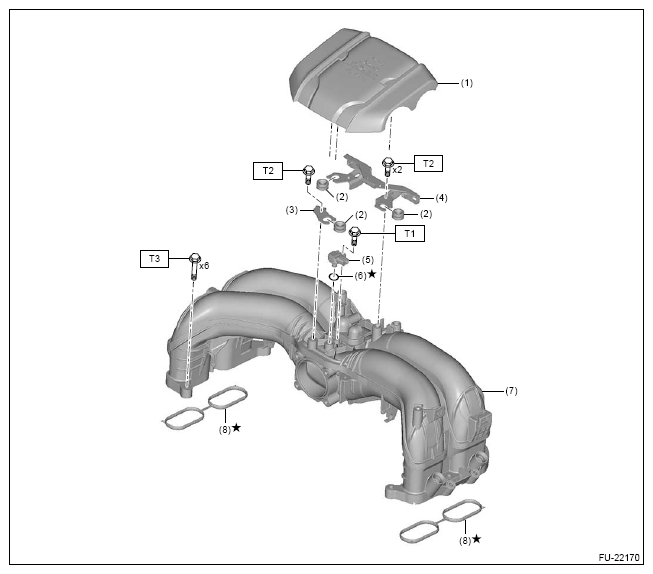

Intake Manifold Assembly
Courtesy of SUBARU OF AMERICA, INC.
| (1) |
Collector cover |
| (2) |
Grommet |
| (3) |
Collector cover bracket No. 1 |
| (4) |
Collector cover bracket No. 2 |
| (5) |
Manifold absolute pressure sensor |
| (6) |
O-ring |
| (7) |
Intake manifold ASSY |
| (8) |
Gasket |
Tightening torque: N.m (kgf-m, ft-lb)
T1: 3.4 (0.3, 2.5)
T2: 6.4 (0.7, 4.7)
T3: 25 (2.5, 18.4)
