RH Side

Install the knock sensor and connect the connector.
NOTE:

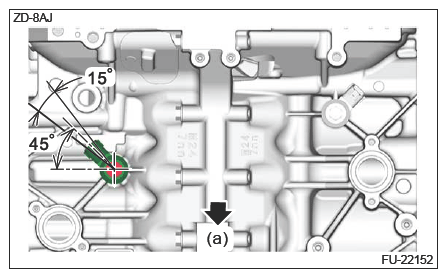

- Knock sensor must be positioned so that the connector center comes within the range shown in the figure.
- Make sure that the knock sensor and its connector do not touch the adjacent parts.
Courtesy of SUBARU OF AMERICA, INC.

(a) Front of engine

Tightening torque:

24 N.m (2.4 kgf-m, 17.7 ft-lb)
Install the fuel pipe insulator No. 1 and fuel pipe insulator No. 2. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>FUEL INSULATOR>INSTALLATION .
Install the air intake boot. Ref. to INTAKE (INDUCTION) (H4DO)>AIR INTAKE BOOT>INSTALLATION .
Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
