Manifold Absolute Pressure Sensor: Removal
- Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
- Remove the collector cover. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>COLLECTOR COVER>REMOVAL .

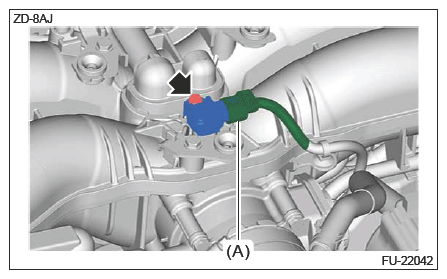

- Disconnect the connector (A) and remove the manifold absolute pressure sensor.
