RH Side

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .

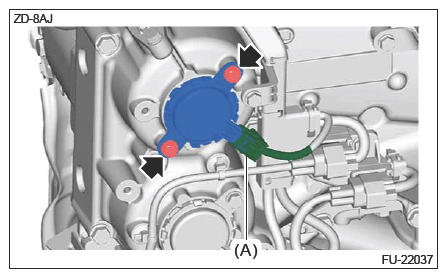

  2. Disconnect the connector (A) and remove the oil control solenoid.
    G16523348Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the O-ring and back-up ring from the oil control solenoid.
