Crankshaft Position Sensor: Removal
- Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .

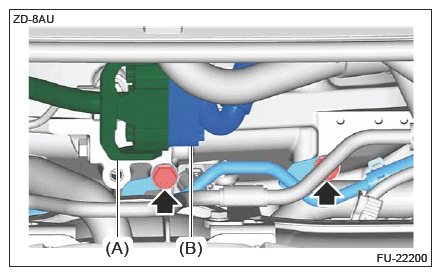

- Disconnect the connector (A) and remove the transmission harness (B) from the ATF cooler pipe. (AT model)
- Remove the bolt securing the preheater pipe.
- Disconnect the connector (A) and remove the crankshaft position sensor.CAUTION: To prevent the preheater hose from being damaged or loose, pay careful attention while moving the preheater pipe.
