Engine Control Module (ECM): Removal

Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .

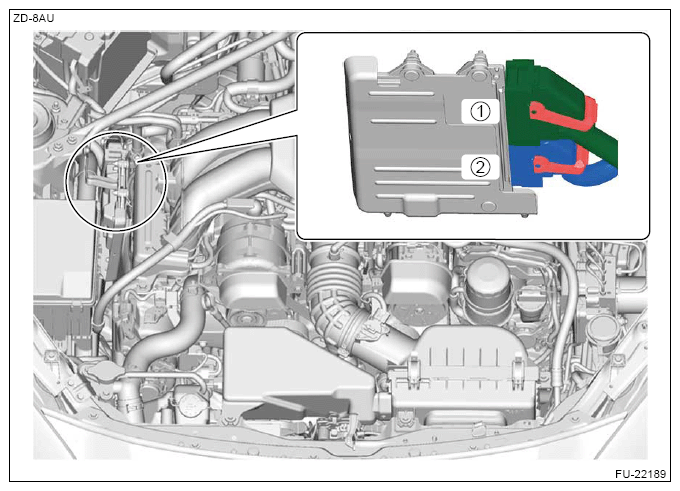

Disconnect the connector in numerical order as shown in the figure.
CAUTION: Make sure that the lock is released before moving the lever in order to avoid damaging the connector.

NOTE: To disconnect the connector, press the portion (a) shown in the figure to release the lock and move the lever in the direction of arrow.

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.

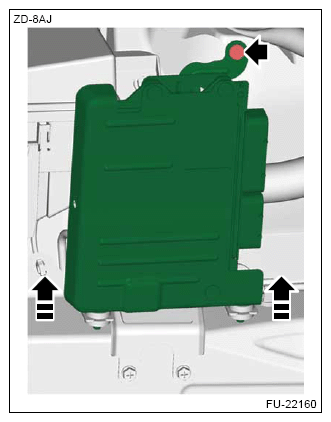

Remove the ECM.
NOTE: Check the grommet for peel-off or disengagement.

Courtesy of SUBARU OF AMERICA, INC.

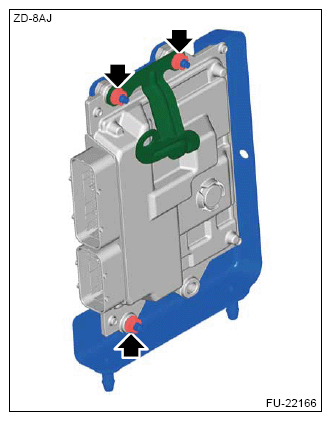

Remove the ECM bracket No. 1.
NOTE:
- Perform this procedure only when required.

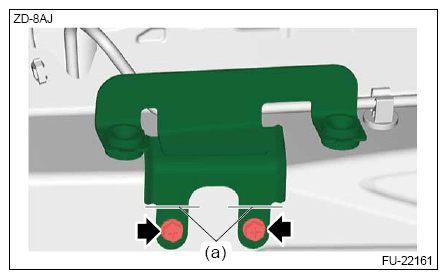

- Using a marker pen, make alignment marks (a) to use for positioning brackets during installation.
Courtesy of SUBARU OF AMERICA, INC.
Remove the ECM bracket No. 2 and No. 3.
NOTE: Perform this procedure only when required.

Courtesy of SUBARU OF AMERICA, INC.
