Fuel Pump Side
- Check that the fuel level sensor has no damage.

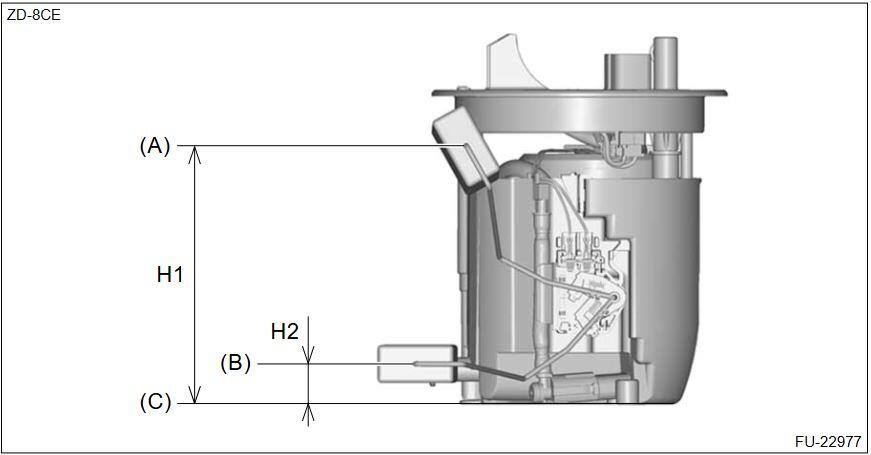

- Measure the fuel level sensor float position.NOTE: When inspecting the fuel level sensor, perform the work with the sensor installed to the fuel pump.

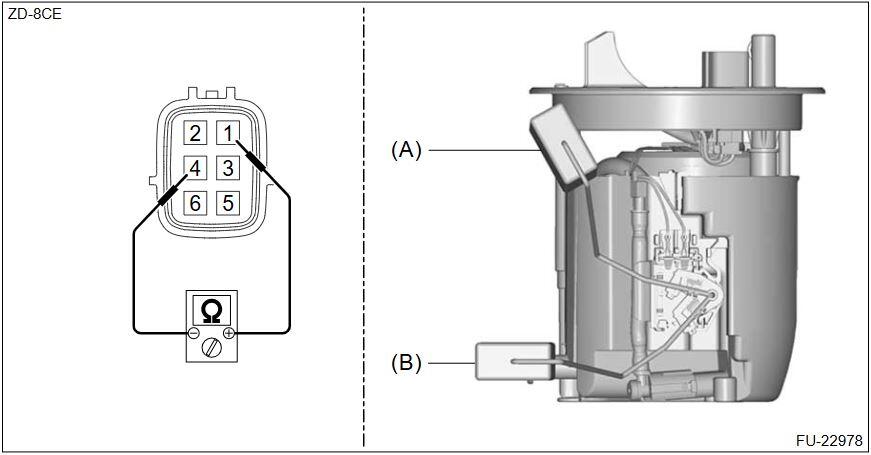

(A) FULL (B) EMPTY (C) Fuel tank seating surface Float position Standard FULL - Fuel tank seating surface H1 114.7 - 122.7 mm (4.516 - 4.831 in) EMPTY - Fuel tank seating surface H2 14.7 - 22.7 mm (0.579 - 0.894 in) - Check the resistance between fuel level sensor terminals by the connector on top of the fuel pump.
| Float position | Terminal No. | Standard |
|---|---|---|
| FULL (A) | 1 - 4 | 6.5 - 8.5 Ω |
| EMPTY (B) | 157.9 - 161.9 Ω |
