Fuel Pump Side
- Remove the fuel pump assembly. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>FUEL PUMP ASSEMBLY>REMOVAL .
- Disconnect the fuel pump connector (A) and fuel level sensor connector (B), and pull out the connector cable and fuel level sensor harness from the clip.

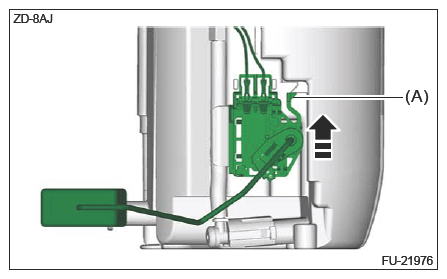

- Press the claw (A) of the fuel level sensor to unlock, and slide the fuel level sensor in the direction of the arrow to remove the fuel level sensor.
