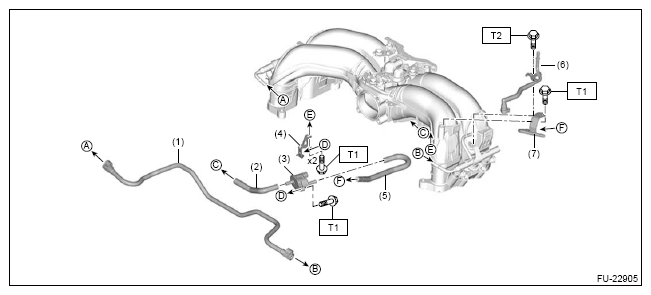

Fuel Pipe 1
Courtesy of SUBARU OF AMERICA, INC.
| (1) |
Fuel delivery pipe |
| (2) |
Vacuum hose |
| (3) |
Purge control solenoid valve |
| (4) |
Purge control solenoid valve bracket |
| (5) |
Vacuum hose |
| (6) |
Fuel delivery pipe ASSY |
| (7) |
Vacuum pipe |
Tightening torque: N.m (kgf-m, ft-lb)
T1: 6.4 (0.7, 4.7)
T2: 9 (0.9, 6.6)
