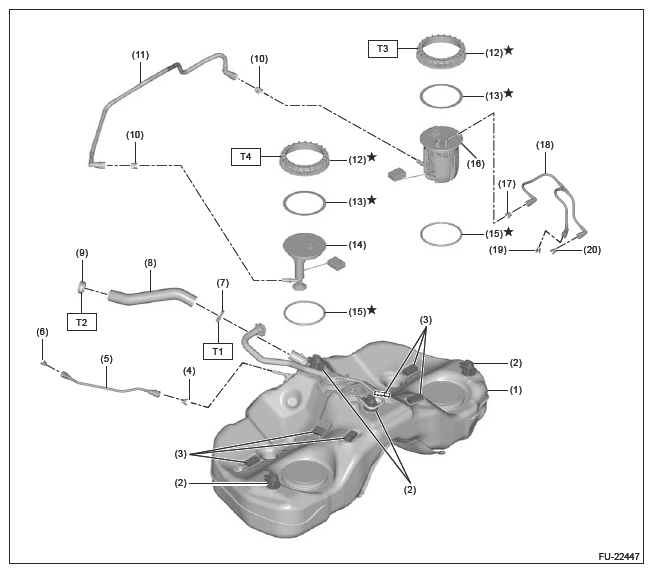

Fuel Tank 1
| (1) | Fuel tank | ||
| (2) | Cushion ASSY | ||
| (3) | Cushion * | ||
| (4) | Retainer | ||
| (5) | Circulate tube | ||
| (6) | Retainer | ||
| (7) | Clamp | ||
| (8) | Fuel filler hose | ||
| (9) | Clamp | ||
| (10) | Retainer | ||
| (11) | Fuel sub delivery tube | ||
| (12) | Ring nut | ||
| (13) | Ring nut plate | ||
| (14) | Fuel sub level sensor | ||
| (15) | Gasket | ||
| (16) | Fuel pump ASSY | ||
| (17) | Retainer | ||
| (18) | Fuel delivery tube | ||
| (19) | Retainer | ||
| (20) | Retainer | ||
|
|||
Tightening torque: N.m (kgf-m, ft-lb)
T1: 2 (0.2, 1.5)
T2: 5 (0.5, 3.7)
T3: Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>FUEL PUMP ASSEMBLY>INSTALLATION .
T4: Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>FUEL SUB LEVEL SENSOR>INSTALLATION .
