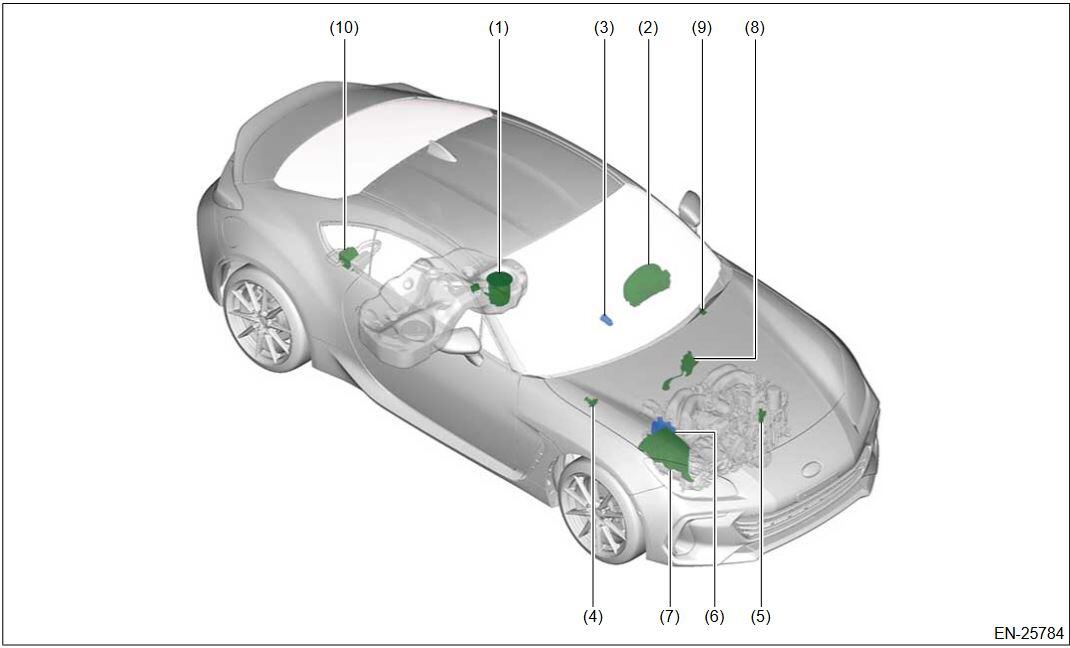

| (1) |
Fuel pump |
| (2) |
Combination meter |
| (3) |
Push button ignition switch |
| (4) |
Battery sensor |
| (5) |
Mass air flow and intake air temperature sensor |
| (6) |
Engine control module (ECM) |
| (7) |
M/B |
| (8) |
M/B |
| (9) |
Accelerator pedal position sensor |
| (10) |
Data link connector |
| (11) |
Leak check valve ASSY |
