Select Lever

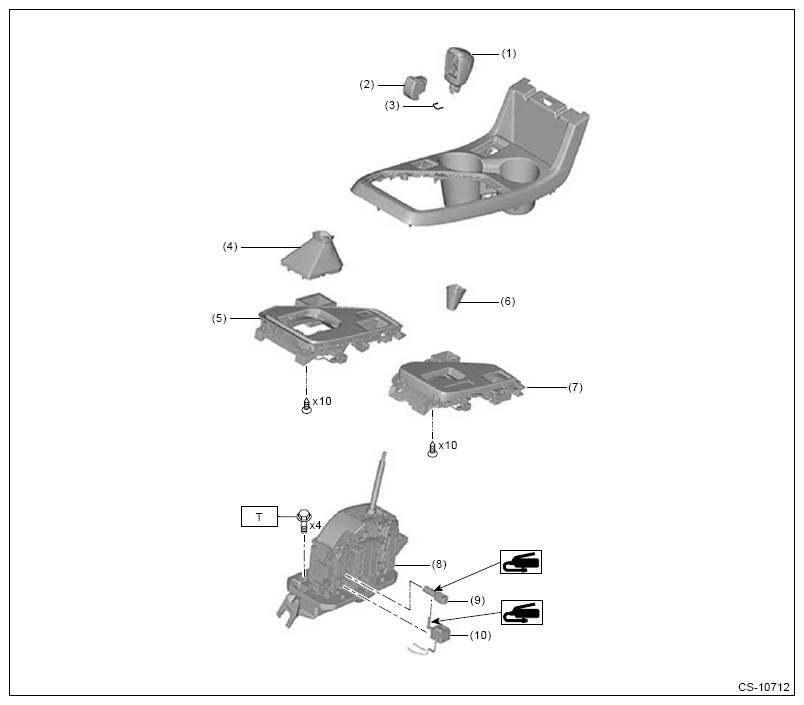

Fig 1: Select Lever Components Location

Courtesy of SUBARU OF AMERICA, INC.

(1)	Grip
(2)	Grip button
(3)	Clamp
(4)	Boot (model with boot shifter)
(5)	Indicator (model with boot shifter)
(6)	Cover grip AT (model with gate shifter)
(7)	Indicator (model with gate shifter)
(8)	Select lever
(9)	Shift lock
(10)	Shift lock solenoid

Tightening torque: N.m (kgf-m, ft-lb)

T: 18 (1.8, 13.3)
