Component Description

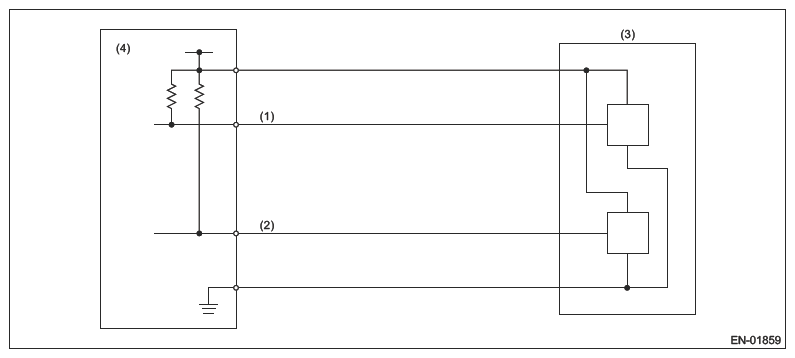

G16350304Courtesy of SUBARU OF AMERICA, INC.
(1) Throttle position sensor 1 signal
(2) Throttle position sensor 2 signal
(3) Throttle position sensor
(4) Engine control module (ECM)
