Component Description

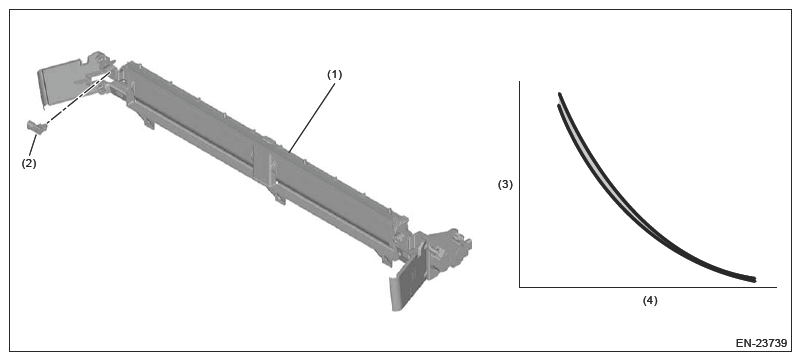

G16345371Courtesy of SUBARU OF AMERICA, INC.
(1) Active grille shutter
(2) Ambient sensor
(3) Resistance value (KΩ)
(4) Ambient air temperature (°C (°F))
