VDC Control Module & Hydraulic Control Unit (VDC Control Module & H/U)

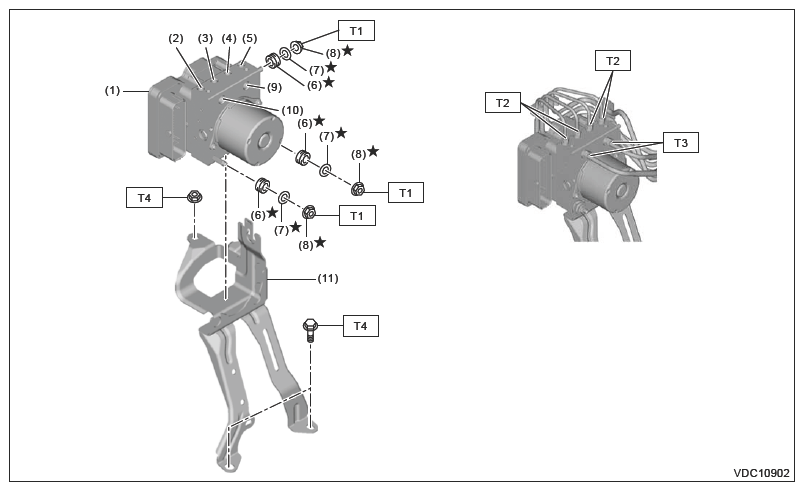

Fig 1: VDC Control Module & Hydraulic Control Unit Components Location (VDC CONTROL MODULE And H/U)

Courtesy of SUBARU OF AMERICA, INC.

(1)	Hydraulic unit ASSY VDC
(2)	Rear RH outlet
(3)	Front LH outlet
(4)	Front RH outlet
(5)	Rear LH outlet
(6)	Damper
(7)	Washer
(8)	Nut
(9)	Primary inlet
(10)	Secondary inlet
(11)	Bracket COMPL hydraulic unit VDC

Tightening torque: N.m (kgf-m, ft-lb)

T1: 7.5 (0.8, 5.5)

T2: 15 (1.5, 11.1)

T3: 19 (1.9, 14.0)

T4: 33 (3.4, 24.3)
