Battery Cable Assembly

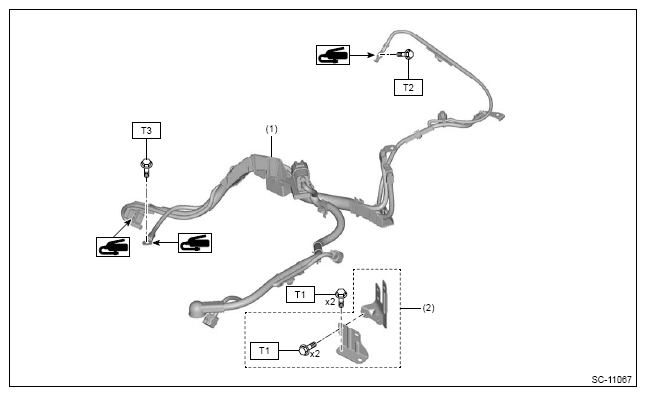

- VIN:] JF1############## [model and] JF2############## [model
Courtesy of SUBARU OF AMERICA, INC.
(1) Battery cable ASSY (2) Battery cable bracket Tightening torque: N.m (kgf-m, ft-lb)
T1: 7.5 (0.8, S.S)
T2: 13 (1.3, 9.6)
T3: 14 (1.4, 10.3)

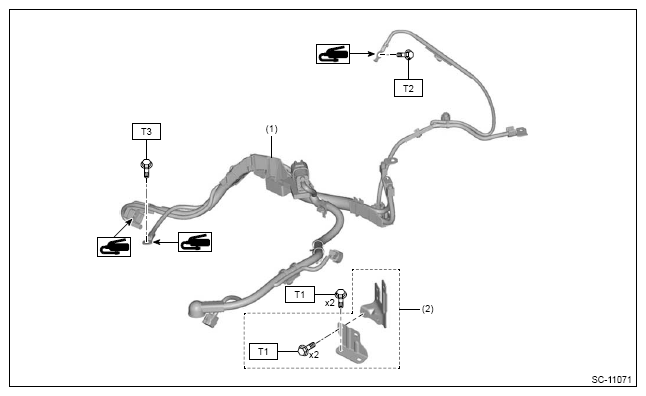

- VIN:] 4S4############## [model
(1) Battery cable ASSY (2) Battery cable bracket Tightening torque: N.m (kgf-m, ft-lb) T1: 7.5 (0.8, S.S)
T2: 13 (1.3, 9.6)
T3: 14 (1.4, 10.3)
