Components With Torque Specifications: Generator

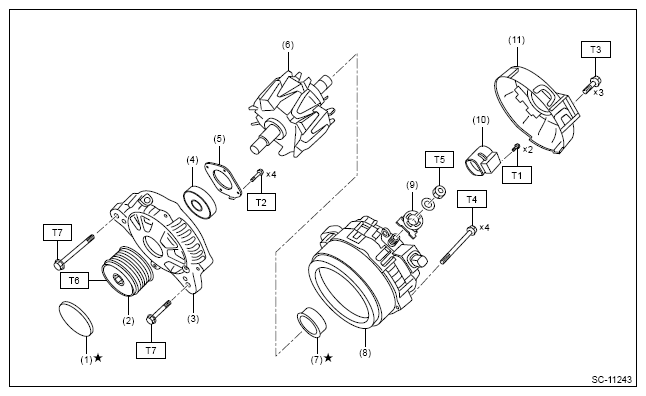

Fig 1: Generator Components Location (2.0 L Model)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 1.76 (0.2, 1.3)

T2: 2.26 (0.2, 1.7)

T3: 4.55 (0.5, 3.4)

T4: 5.6 (0.6, 4.1)

T5: 15.5 (1.6, 11.4)

T6: 80 (8.2, 59)

T7  : Ref. to STARTING/CHARGING SYSTEMS (H4DO)>GENERATOR>INSTALLATION .

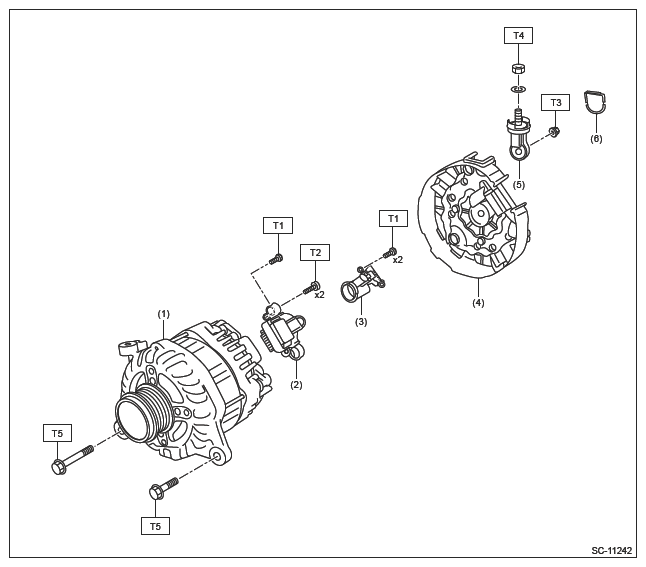

Fig 2: Generator Components Location (2.5 L Model)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 2 (0.2, 1.5)

T2: 3.9 (0.4, 2.9)

T3: 8.9 (0.9, 6.6)

T4: 15.5 (1.6, 11.4)

T5  : Ref. to STARTING/CHARGING SYSTEMS (H4DO)>GENERATOR>INSTALLATION .
